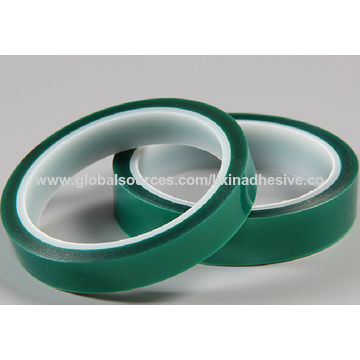

Key Specifications/ Special Features:

• Material: polyimide film coated with heat-resistant silicone adhesive.

• Due to its stable press-sensitive macromolecule adhesive layer under high temperature, tape offers excellent properties of heat resistance, electrical insulation, solvent resistance and radiation protection

• No abnormal smell, which does not cause damage to human-beings and the environment.

• Offers better elongation at rupture and is used for electrical insulation of electrical equipment and high temperature insulation

• Offers highest heat resistance among film adhesive tapes, so it can also be applied for insulation in high grade equipment, motors, Lithium batteries

• Protects gold finger of PCB during wave soldering with no adhesive left after tape is torn off

• Can also be applied for shielding in high temperature condition

• Nominal thickness: 0.075+0.035mm (PI + silicone)

• Breakdown strength: ≥4.7kV

• Tensile strength: ≥220N/25mm

• Elongation: ≥45%

• Peeling strength: ≥5N/25mm

• Working temperature: 180°C (long-term) and 260°C (15 minutes, no remains of adhesive)

• Short-term ultimate working temperature: -73 to 260°C

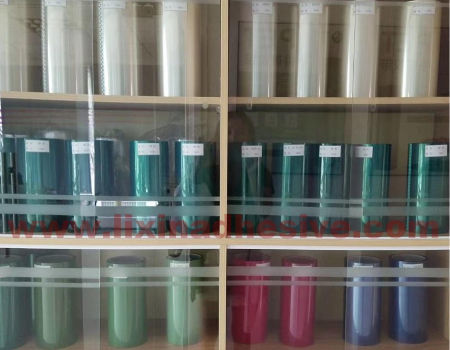

Sample room

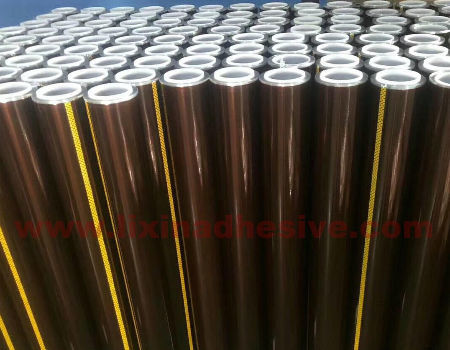

Polyimide tape

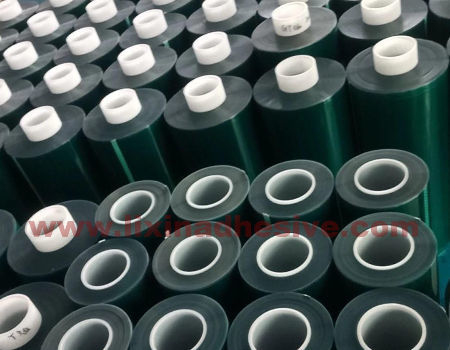

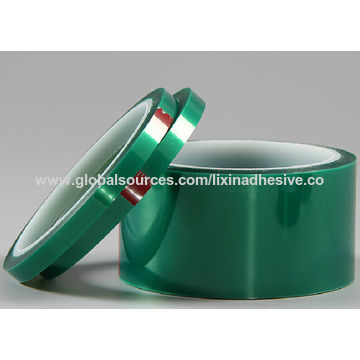

PET Green tape

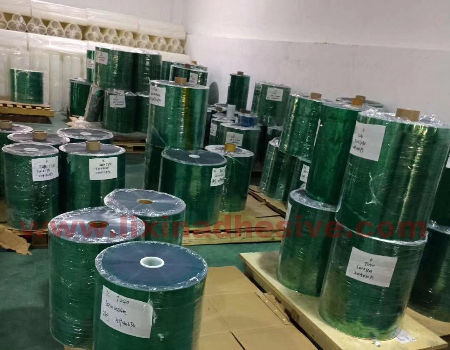

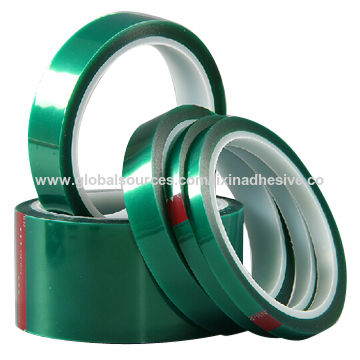

PET green tape joboll

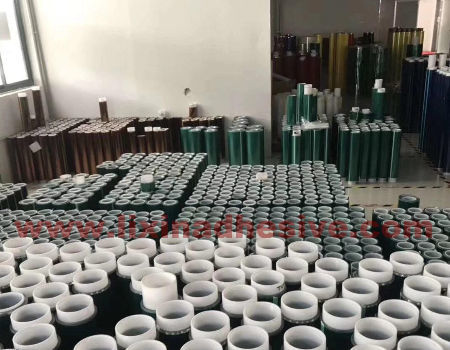

Warehouse

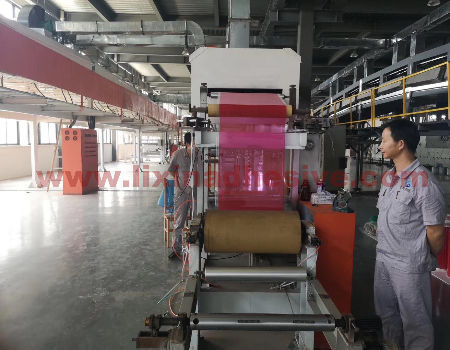

High temperature tape coating production line

Supplying adhesive products since 2000

Exporting to 80+ countries | REACH/RoHS-/ISO 9001 certifications | OEM/ODM services

An Expert in Various Tapes used in Different Industries
Lixin Adhesive Technology (Shanghai) is the solely invested enterprise of Lixin Adhesive Technology Holding Ltd. We are one of the biggest manufacturers of tapes and dispensers in China. Our tapes are distributed in more than 80 countries and regions including Europe, the US and Southeast Asia. They are also widely used for consumption, packaging, automobile, electronic and special purpose industries.

Meeting SGS, RoHS, UL, CT and TuV Standards
Most of our exports have passed SGS or RoHS standards and some electrical insulating materials have passed UL, CT, TuV and other requirements.

Committed to Offering Total Customer Satisfaction
We are located in Shanghai's Jiading Industrial Zone with a total investment value of $25 million. With a globalized "Coating Technology" vision in mind, we have diversified our product range, improved on production efficiency and satisfied our customers, thus enhancing our competitiveness. We are committed to a policy of providing the best product quality to give total customer satisfaction on a continuously improved basis.

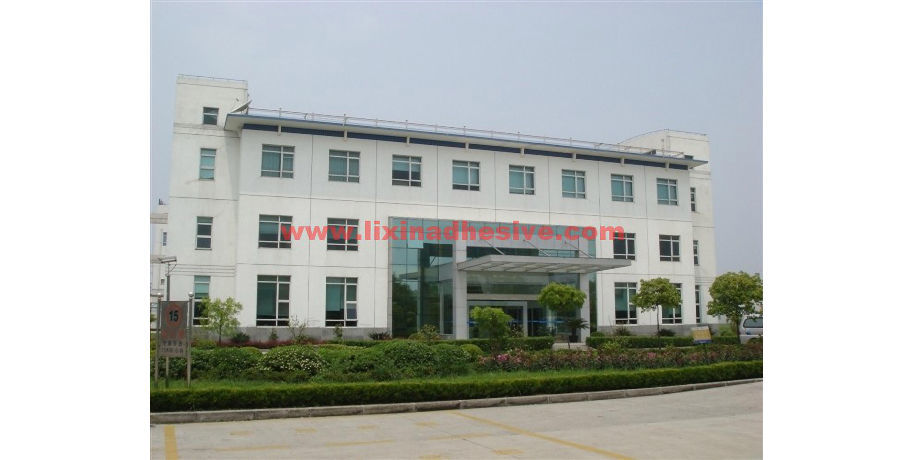

                                                                                               Our office building

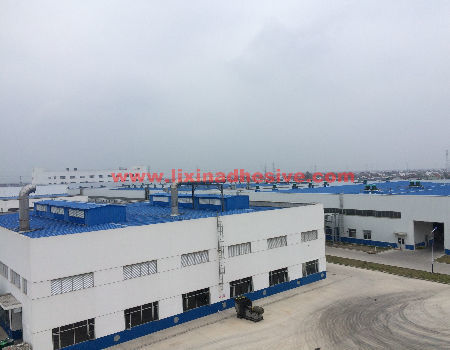

Aerial view of our company

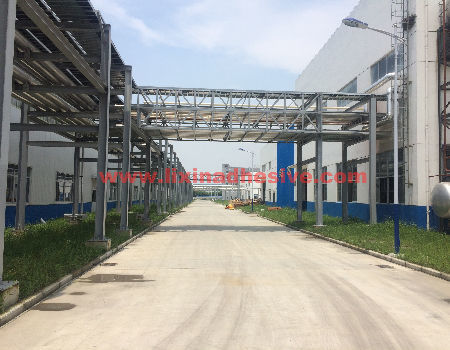

The corner of our company

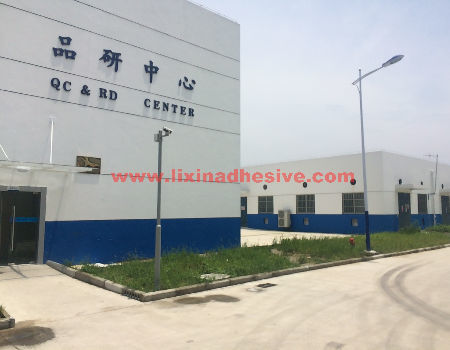

Research and quality control center

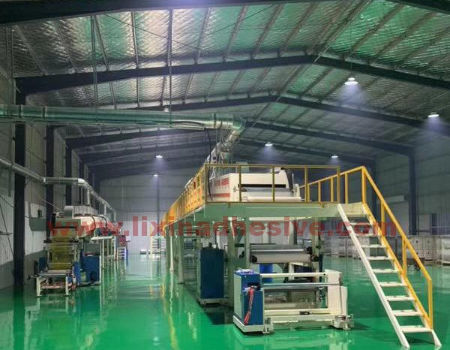

High temperature tape coating production line

Shipping Information

Main Export Markets

- Asia

- Australasia

- Central/South America

- Eastern Europe

- Mid East/Africa

- North America

- Western Europe

Contact Supplier

 (Supplier & product information updated August 26, 2022.)

Lixin Adhesive Technology (Shanghai) Co. Ltd
