Key Specifications/ Special Features:

Entails:

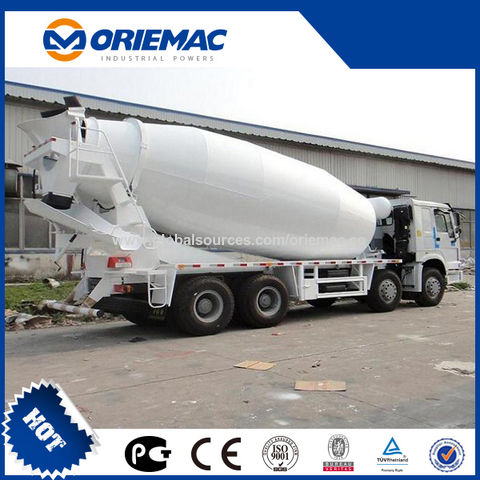

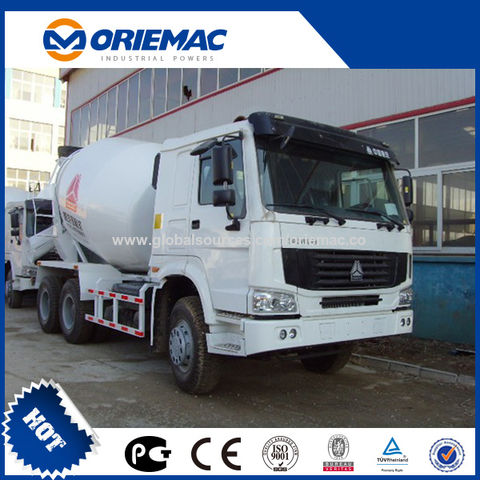

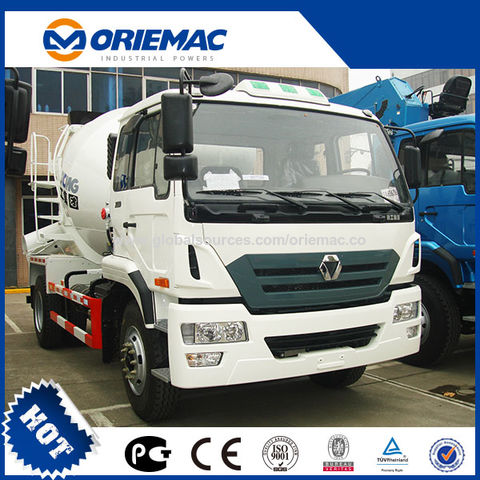

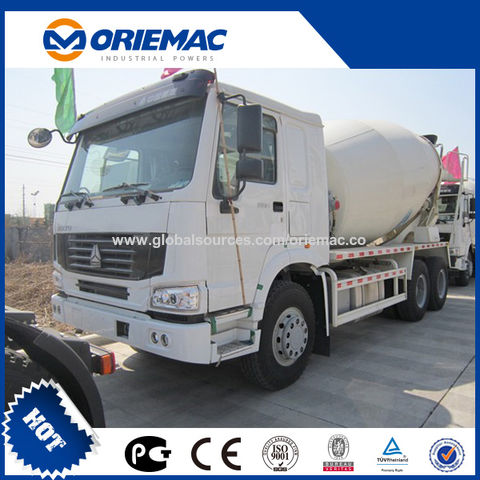

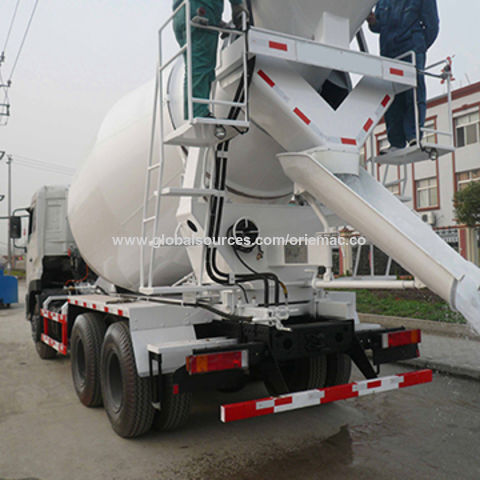

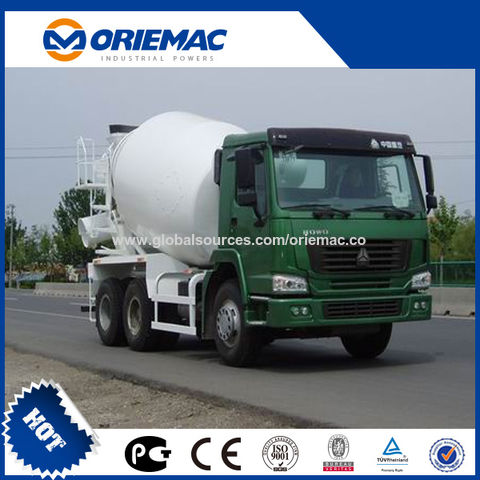

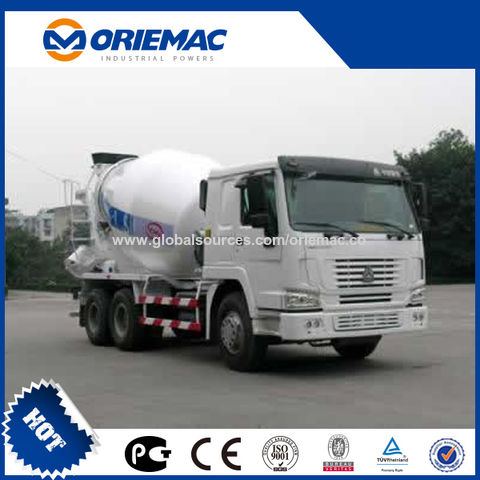

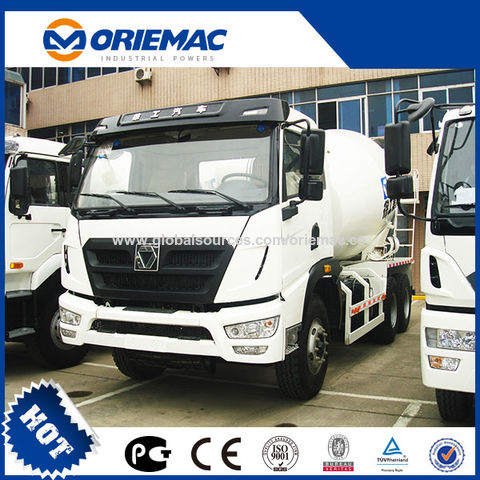

This concrete mixer truck chassis adopt men’s technology , it is a new generation of high-end heavy-duty truck ,uniform mixing and conveying concrete, discharging is fast, low residual rate,with strong power performance outstanding fuel performance , low residual rate and discharging in fast can realize high efficiency and high profit

It is the special purpose vehicle to keep mixing the concrete while transporting the concrete or in the construction site to maintain the concrete consistent , prevent the initial setting and separation during the transportation , ensure the pouring quality and reduce the concrete loss

Howo concrete mixer truck volume you can choose: 8/9/10/12/14/16cbm
Geometric volume: 13.5/14.5/16.5/19.5/21.65/23.5cbm
Corresponding nominal volume:8/9/10/12/14/16cbm
Corresponding volume:400L
Maximum hopper size:980mm
Drive style: 6x4, 8x4

Advantages:
1) IS9000 and TS16949 quality management system certificate
2) Quick delivery after deposit
3) High load capacity
4) Comfortable driving

Specifications:

Name: Sinotruk Howo concrete mixer truck 6X4
Model: ZZ5256GJBV404MD1
Driving wheel:6X4
Wheelbase: 4025+1350mm
Overall dimension: 9940(L)*2496(W)*3980mm(H)
Frame section: 300*80*8+280*70*8mm
Vehicle gross weight: 14.17T
Gross weight (max): 25 tons
Economic speed :50-70km/h
Max speed: 78km/h
Engine: MC11.40-40,MC11.41-40
Number of cylinders: 6
Fuel type: diesel
Chassis: Howo C7H
Emission standards: Euro 4/Euro 3/Euro 2
Maximum horsepower: 400HP
Torque: 1900Nm, 2100Nm
Transmission: ZF16S
Clutch: 430
Tire size: 11.00-20, 11.00R20,12.00-20 16PR, 12.00R20 16 PR
Volume of tank: 400L
Rear axle: AC16
Rear axle ratio: 4.77,5.45
