| Min. Order: | 100 |
| Price: | 3.5-7 |
| Port: | China |
| Place of Origin: | Ningbo,China |
| Settlement Method: | L/C |
| Transportation Method: | Shipping |
| Company: | Shenzhen Neo Electronics Co. Ltd |
| Contacts: | Ms.Chen Feilin |
| Mail: | helen@szneo.com |
| Phone: | 13714618443 |
| Website: | http://www.szneo.com |
| PV: | 197 |
Supplier
Shenzhen Neo Electronics Co. Ltd
| Model Number | NAS-DS05W0 | ||||
|---|---|---|---|---|---|
| Brand Name | NEO | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||

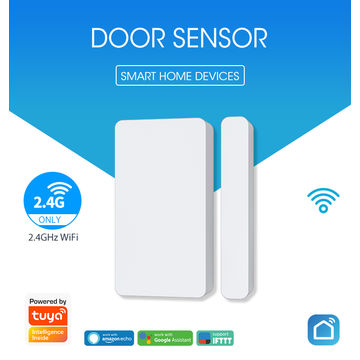

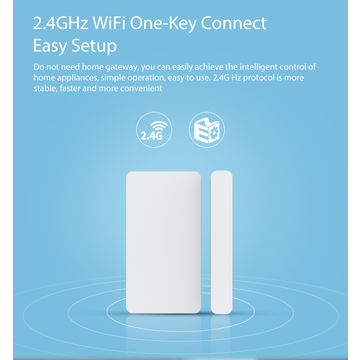

Product name:Wi-Fi door sensor
Model:NAS-DS05W7
Battery type:AA LR6 1.5V * 2PCS
Stand by current:open:28.4uA; close:28.1uA
Trigger current:43mA
Pairing current: 37mA
Working time:4000 times
Operating temperature:0℃～ 40℃ (32°F～104°F)
Operating Humidity:20% ～ 85%
Storage Temperature:0℃ ～ 60℃ (32°F ～140°F)
Storage Humidity:0% ～ 90%
Wireless type:2.4GHz
Wireless standard:IEEE 802.11b/g/n
Wireless range:35M
weight(not include battery):53g
Size:Main body:82mm x 42mm x 16mm
Small body:82mm x 11mm x 18mm
Powered by AA battery ;
easy to setup
Detect the door is open /close ;
alert to the phone app;
can also be installed in windor.
the magnet range between the main and deputy is 15mm

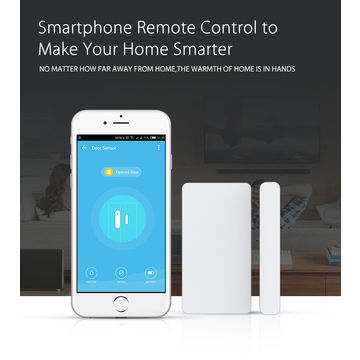

Notification on app interface
Product Certifications

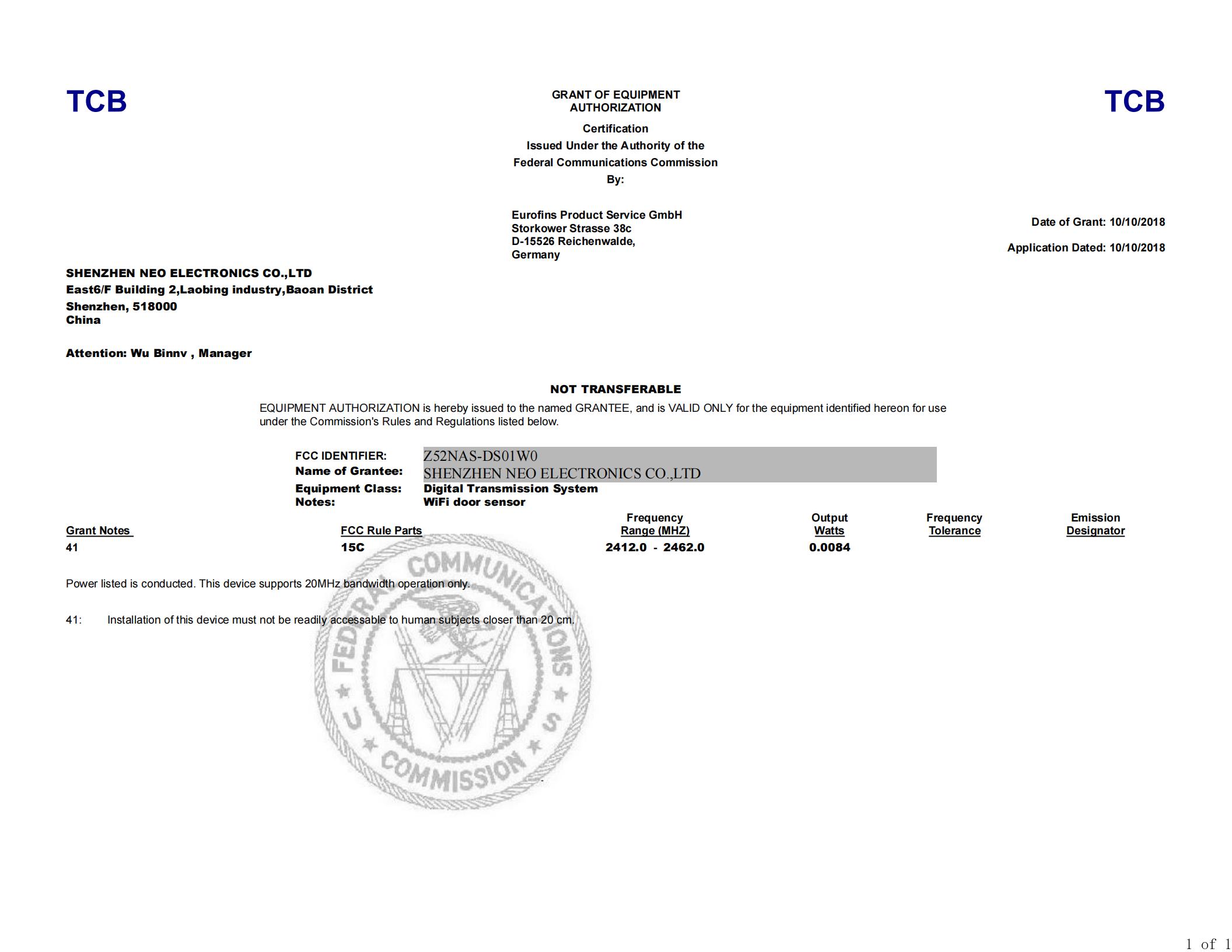

| Certificate Standard | FCC | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the picture to see a larger one | ||||
| Certificate Number | Z52NAS-DS01W0 | ||||
| Issue Date | 2018/10/10 | ||||
| Issued By | Federal Communications Commission | ||||
| Expiry Date | 2025/10/11 | ||||
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
| FOB Port | Shenzhen | ||||
|---|---|---|---|---|---|
| Weight per Unit | 0.08 Kilograms | ||||
| HTS Code | 8531.10.00 00 | ||||
| Export Carton Dimensions L/W/H | 45 x 27 x 21 Centimeters | ||||
| Lead Time | 5–10 days | ||||
|---|---|---|---|---|---|
| Dimensions per Unit | 8.5 x 2.5 x 9.5 Centimeters | ||||
| Units per Export Carton | 100.0 | ||||
| Export Carton Weight | 5.6 Kilograms | ||||
