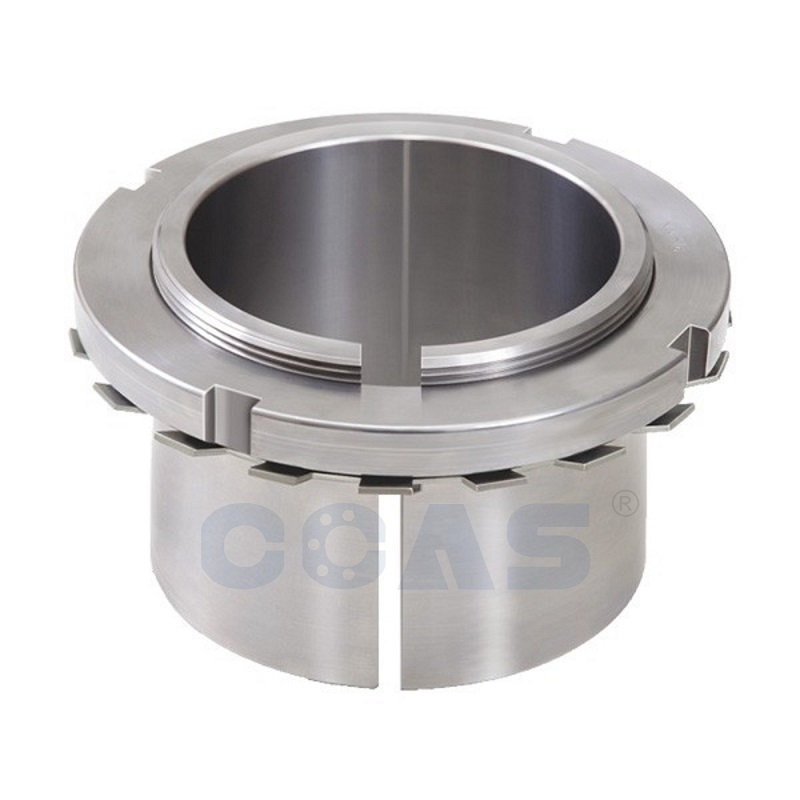

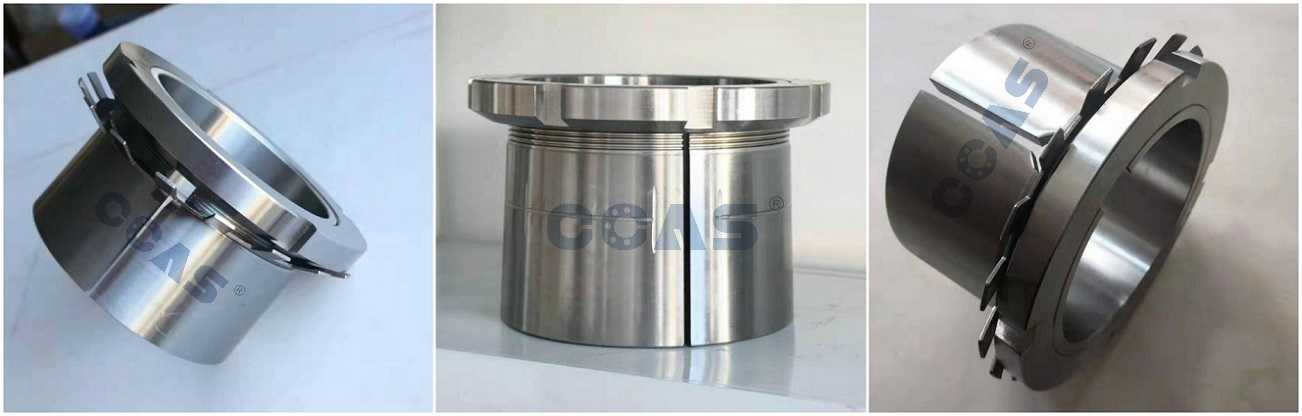

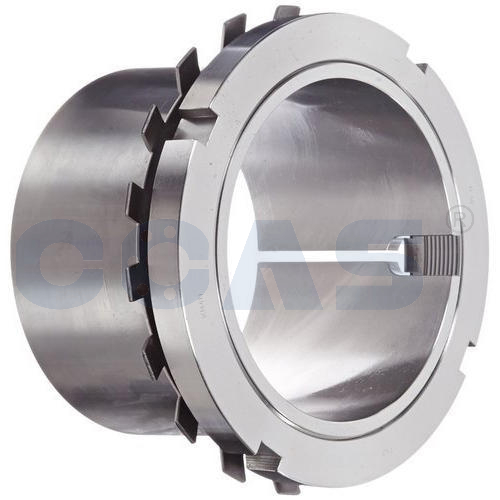

Bearing Adapter Sleeves are commonly used for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain or stepped shafts. They are easy to install and require no additional location on the shaft. When adapter sleeves are used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, bearings can be accurately positioned axially thereby facilitating bearing mounting and dismounting. A bearing Adapter is made up of the a sleeve, a lock nut, and a lock washer.

Technical Details:

Product Name: Bearing Adapter Sleeves

Series: H 23 series, HE 23 series, HS 23 series, HA 23 series

Model Number: H 2305, H 2310, H 2322, HE 2309, HE 2317, HS 2315, HA 2320 etc

Taper: 1:12

Material: Carbon Steel

CCAS Bearings Ltd manufactures a comprehensive range of adapter sleeves and withdrawal sleeves. Our adapter sleeves range covers H 2 Series, H 3 Series, H 23 Series, H 31 Series, H 32 Series, H 30 Series, H 39 Series, HOH 23/HOH32 Series, HOH 31 Series, HOH 30 Series, HOH 39 Series. The Withdrawal Sleeves range covers AH 2 Series, AH 3 Series, AH 23 Series, AH 32 Series, AH 22 Series, AH 30 Series, AH 240 Series, AH 241 Series, AH 39 Series etc.

Drawing and Technical Parameters of H 23 Series Adapter Sleeves

Great care has been taken to ensure the correctness of the information contained in this publication but no liability can be assumed for any incorrect or incomplete data. CCAS technical department reserves the right to final interpretation.

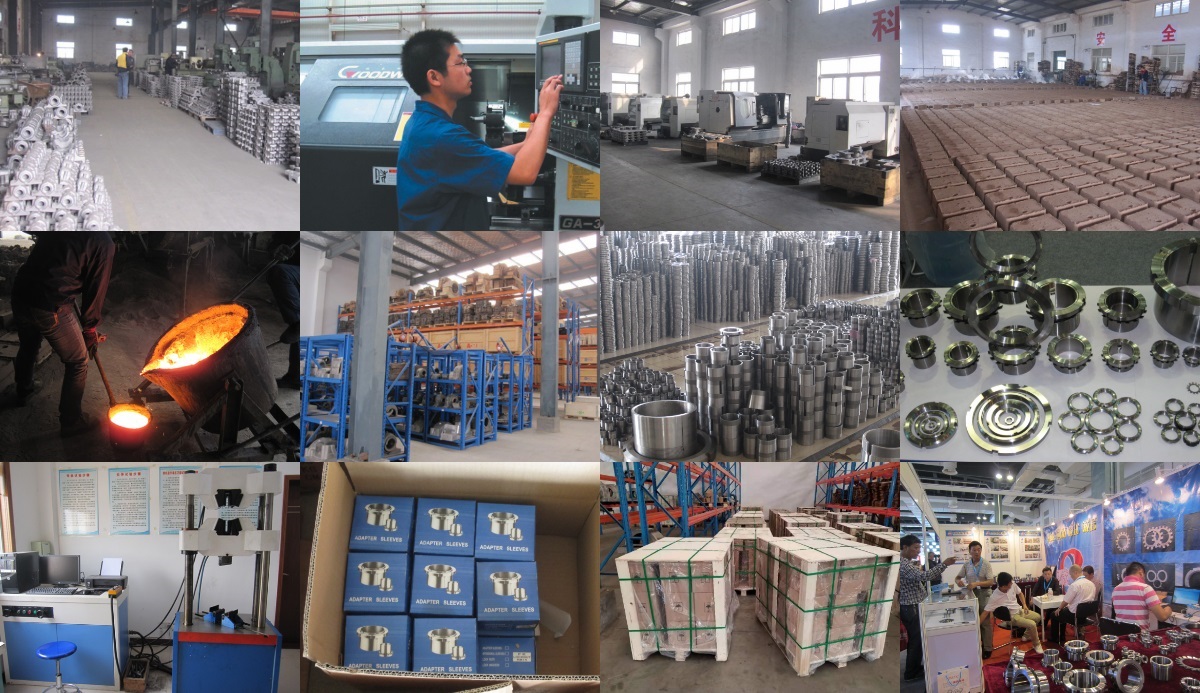

Incorporated in 1996, CCAS Bearing Ltd specializes in producing and supplying high-quality adapter sleeves, withdrawal sleeves, hydraulic adapter sleeves, hydraulic withdrawal sleeves, lock nuts, lock washers, bearing housings, plummer blocks, pillow blocks, precision lock nuts, hydraulic nuts, clamping elements, adjustable hook wrenches/C Shape Spanners, Deep Groove Ball Bearing, Spherical Roller Bearings, Cylindrical Roller Bearings, Self Aligning Ball Bearings, and various Bearing Accessories. Apart from two factories of our own, we have also established great cooperative relations with more than 200 bearing accessories manufacturers in China. We know the people, the market, the industry, and we have all the necessary resources and know-how, which make CCAS can literally produce and source everything for you. If you want to find a professional and trustworthy partner/supplier/agent in China, CCAS is the ONE.

CCAS is your ideal and reliable ONE-STOP bearing accessories and tools supplier. It is our pleasure to provide you products that feature the quality, durability, service, and good prices you expect.
