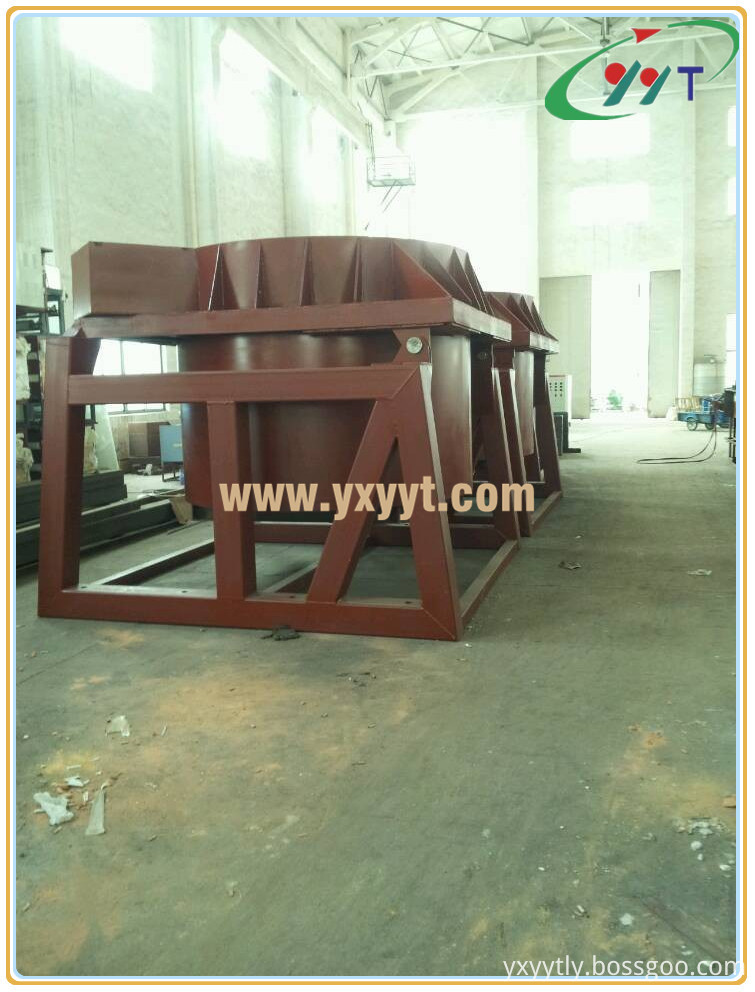

Hydraulic Tilting crucible melting furnace I. Technical basic requirements1. Melting products: Bi2. Furnace type: Hydraulic Tilting Cast iron crucible furnace3. Fuel: 2# light oil4. Crucible capacity: 1.85m³ (φ 1400mm× H1200mm)>12MT BiII. Main technical parameters1. Furnace overall dimension: : L3000mm× W3000mm× H2500mm(according actual size)2. Crucible material: Heat-resisting tilting cast iron crucible3. Crucible size: φ 1400mm× H1200mm4. Heating mode: 2# light oil5. Maximal use temperature: 1050c6. Burner quantity: 1 piece7. Burner power: 534-1168KW8. Burner specification: PRESS 3G(Double section fire)9. Burner brand: Riello(Italy, CE certification)10. Oil consumption per hour: 45-100kg11. Exhaust mode: Chimney nature exhaust12. Atmosphere in chamber: Cooling fan adjust the temperature in crucible13. Temperature control mode: Automatic constant temperature, temperature adjustable, over temperature alarm, fault alarm, crucible leakage alarm14. Temperature control point: 1 piece(in chamber or metal bath)15. Temperature measuring point: 2 pcs(in chamber)16. Distribution box output power: 10KVA/50HZ/380V/417. Furnace structure: Hydraulic Tilting Cast iron crucible furnace18. Chamber material: High aluminum fire-resistent castable(1400c fire-resistant)19. Insulation material: Ceramic fiber board with aluminum silicate cotton20. Loading mode: Forklift or crane21. Furnace weight: About 11TIII. Corollary equipment30-40T Hydraulic double push rod systemIV. Accessories included1. Corundum ceramic protect tube thermocouple: 5 pcs2.316 stainless steel protect tube thermocouple: 3 pcs4. Ignition control box: 15. Temperature control meter: 16. Temperature measurement table: 1
