Key Specifications/ Special Features:

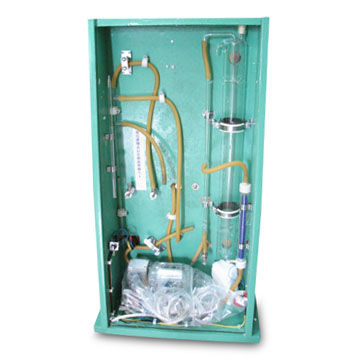

Average particle size analyzer (fisher sub-sieve sizer) is developed according to the theory of air permeability that could fast measure average diameter of the powder and grainApplications: it is an absolutely necessary measuring device of magnetic material, powder metallurgy, hard-fusing metal, special type porcelain, tungsten and molybdenum material, hard alloy, colored metal, nonmetal, chemistry, building material, special material for national defense and the research and production of powderThe average particle diameter of the powder is indicated directly on a self-calculating chart by the liquid height in one arm of the flow meter tubeNo dispersion is required, and the results are unaffected by particle shapeMeasuring

1. Measuring range: 0.20-50µm (micron)

2. Porosity range: 0.25-0.40, 0.40-0.80, 0.80-0.95

3. Repeatability: ±3%

4. Environment temperature: 25±10℃

5. Preciseness: ±3%

6. Power: 30W

7. power supply: 220±22V

8. Weight: 18Kg

9. Outlook size:735×414×244mm3
