Key Specifications/ Special Features:

Key Specifications/ Special Features:
Special Features:
Graphite rod is often used in high temperature vacuum furnace of the electric heating body, the highest use temperature up to 3000℃, easy to oxidize at high temperature, in addition to vacuum, can only be used in neutral atmosphere or reducing atmosphere.
It has a small coefficient of thermal expansion,high thermal conductivity,resistance coefficient is (8 ~ 13) x 10-6 Ω, m,better processability than SiC bar, MoSi2 bar,high temperature resistant,good resistance to extreme cold and heat,the price is cheaper.

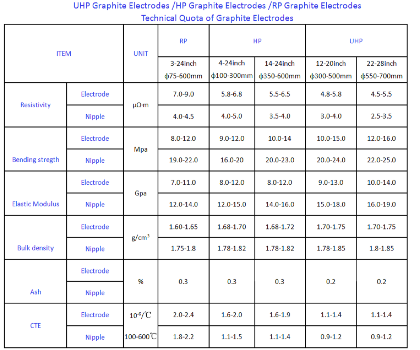

specifications

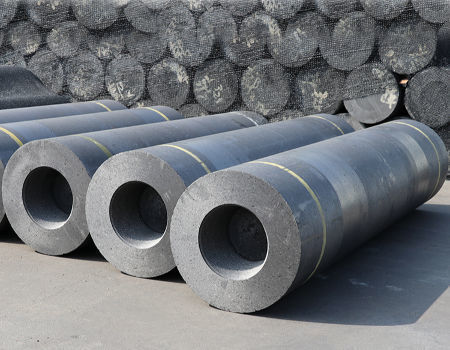

Ordinary power graphite electrode:
1,100-350 mm in diameter, specific resistance 6-9 μΩm, flexural strength 10-12Mpa,
elastic modulus 7-9 Gpa,thermal expansion coefficient 1.8-2.9 X 10-6/℃,compressive strength 18-22 Mpa,volume density 1.6-1.63G/CM3,ash content 0.3%.
2,400-600 mm in diameter, specific resistance7-10 μΩm, flexural strength 6.5-10Mpa,
elastic modulus 7-9.3Gpa,thermal expansion coefficient 1.7-2.9 X 10-6/℃,compressive strength 18-22 Mpa,volume density 1.6-1.63G/CM 3,ash content 0.3%.

High power graphite electrode
1,200-350 mm in diameter, specific resistance 6-7μΩm, flexural strength 10-15 Mpa,
elastic modulus 9-12 Gpa,thermal expansion coefficient 1.6-2.2 X 10-6/℃,compressive strength 24-28 Mpa,volume density 1.7-1.74 G/CM 3,ash content 0.3%.
2,400-500 mm in diameter, specific resistance 6-7μΩm, flexural strength 10-13 Mpa,
elastic modulus 9-12 Gpa,thermal expansion coefficient 1.5-2.2 X 10-6/℃,compressive strength 24-26 Mpa,volume density 1.72-1.73 G/CM 3,ash content 0.3%.

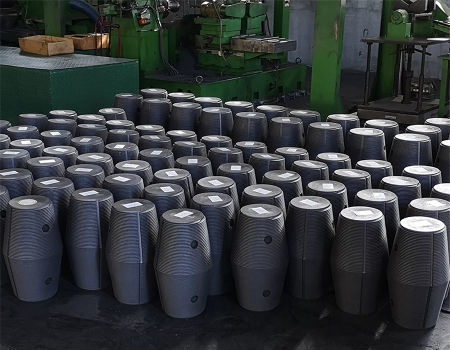

Electrode joint
200-500 mm in diameter, specific resistance 4-7μΩm, flexural strength 12-20 Mpa,
elastic modulus 24-26 Gpa,thermal expansion coefficient 2.0-3.0 X 10-6/℃,compressive strength 32-38 Mpa,volume density 1.7-1.8 G/CM 3,ash content 0.3%.

USES:

1. Widely used in metallurgy and petroleum industries as anticorrosive and refractory materials;

2. Widely used in the electronic industry as conductive materials such as electrolytic plate and electrode;

3, can be used as wear resistant, lubricating material;

4. Make pump plates or sealing materials;

5. Used in industrial furnaces as components of industrial furnaces;

6, used in centrifugal pumps and other equipment.

Our company provides customers with ordinary, high power, high body density graphite electrode for customers.

Our company can produce different types of products according to customer requirements, please consult the product manager for details.

FAQ

1. who are we?
We are based in Hebei, China, start from 2021,sell to South America(12.00%),South Asia(12.00%),Southeast Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Central America(8.00%),Eastern Asia(8.00%),Eastern Europe(6.00%),Domestic Market(6.00%),Western Europe(5.00%),Mid East(5.00%),Africa(4.00%),Southern Europe(4.00%),Oceania(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
copper wire scrap,copper cathodes,aluminum ingot,zinc ingot,tin ingot

4. why should you buy from us not from other suppliers?
With years efforts and development, we have achieved a certain scale and strength. Now we have a technical service team, which provides users with higher and better product services with excellent service quality and professional and safe technical service

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,French,Russian

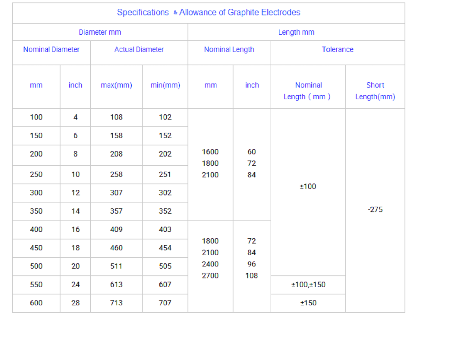

specification

uhp

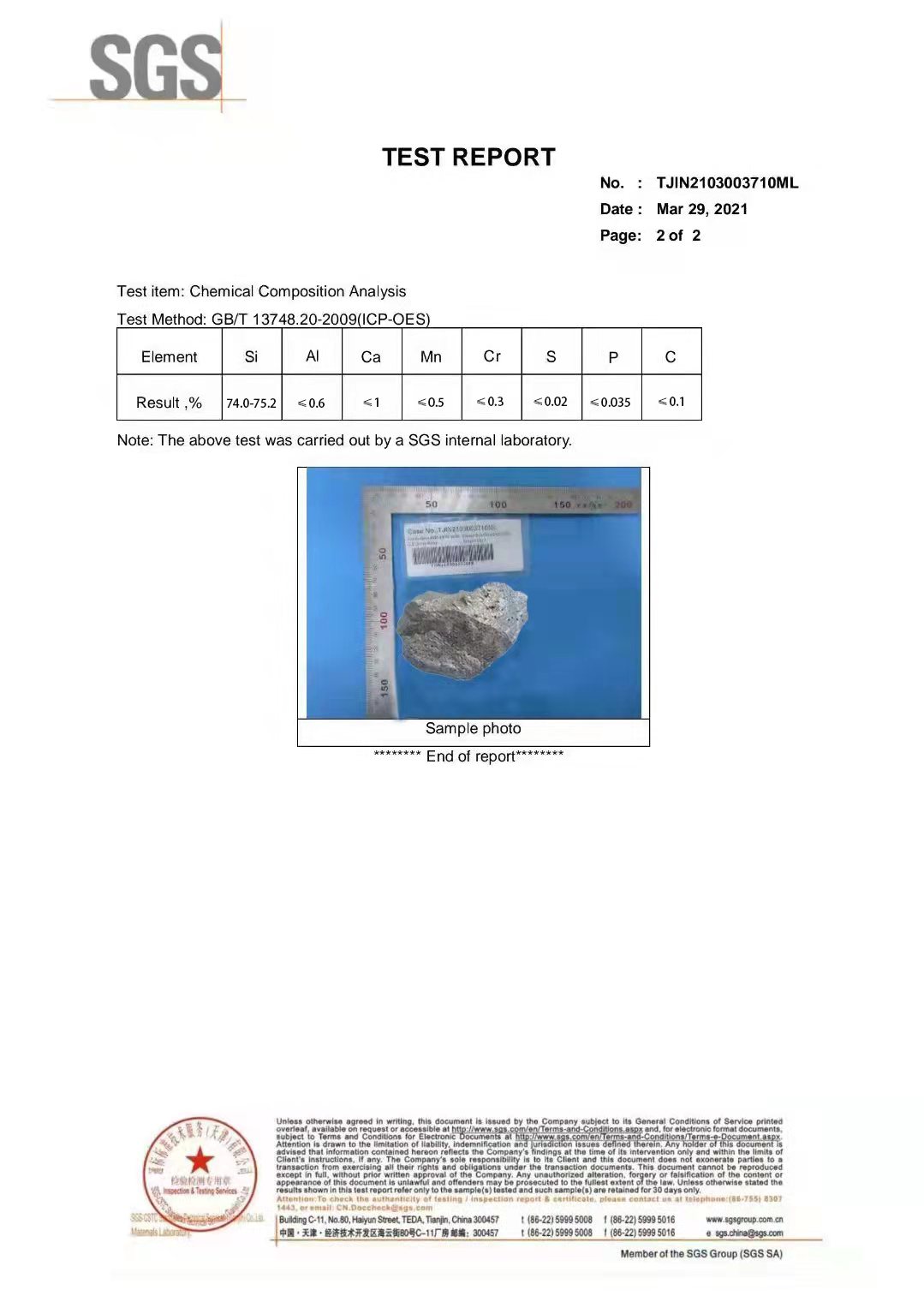

Product Certifications

Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.

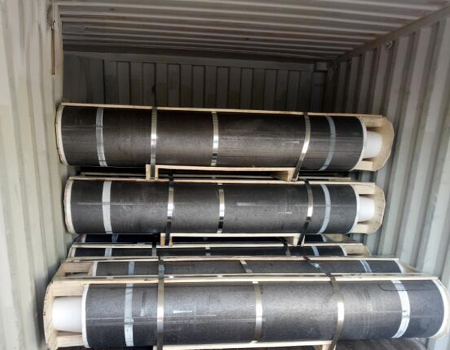

Shipping Information
