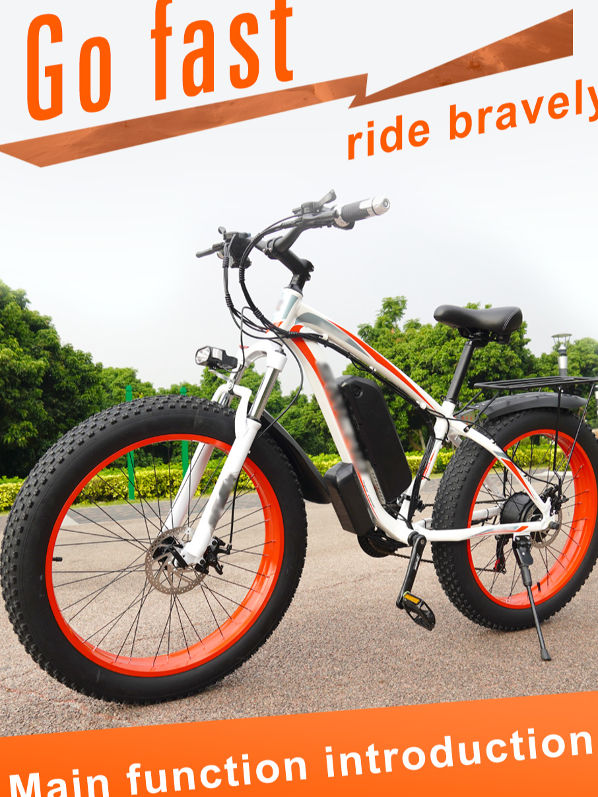

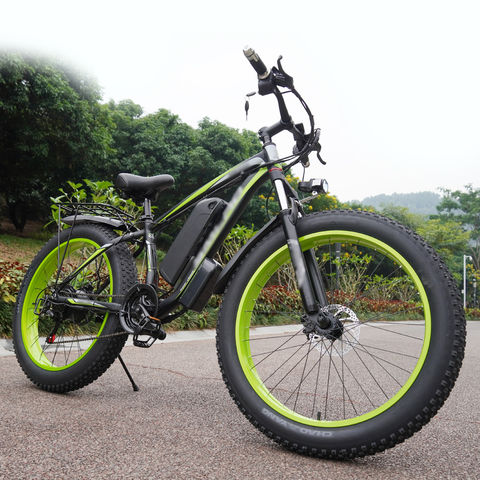

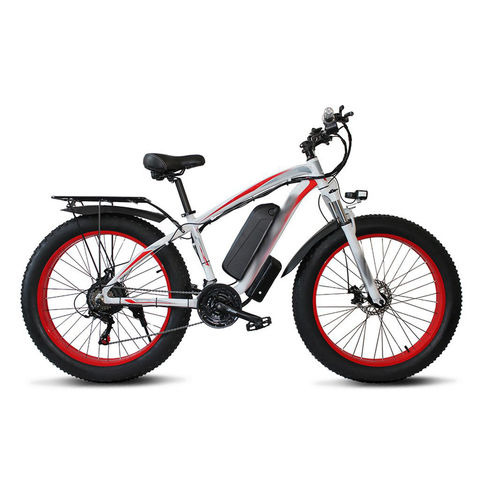

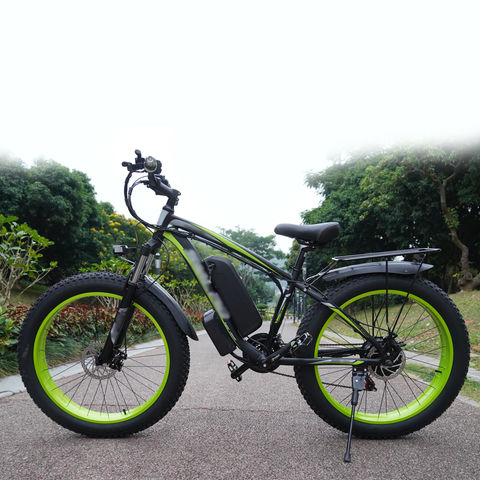

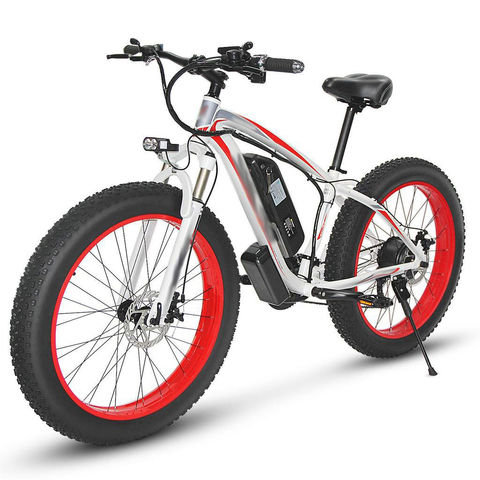

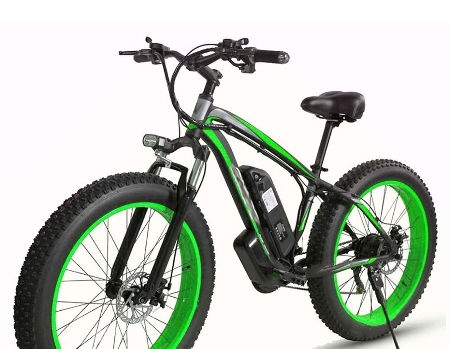

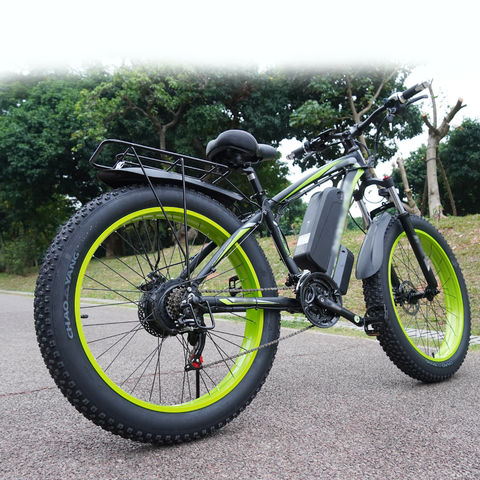

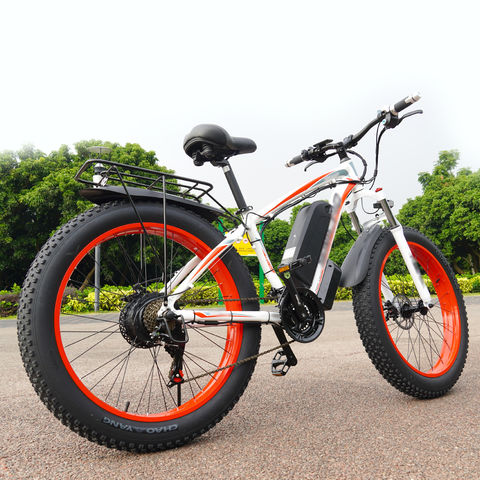

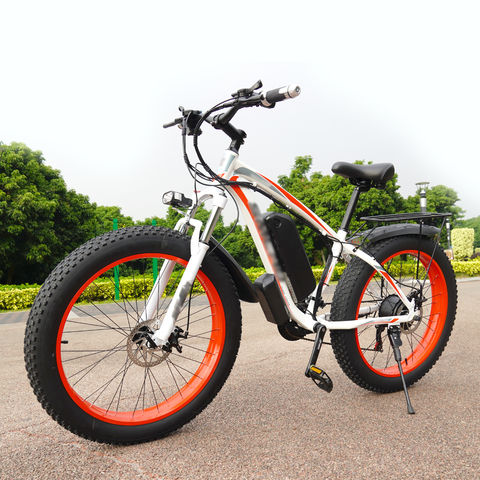

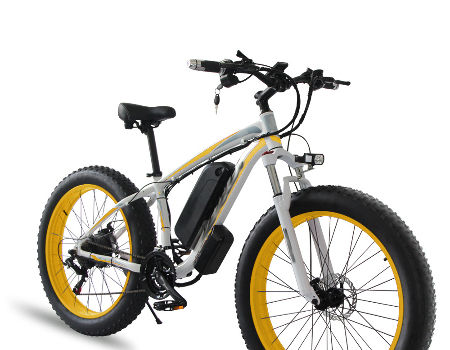

Electric fat bike 26inch electric aluminuim city bike double seats electric mountain bike

Min. Order:	1
Price:	401
Port:	China
Place of Origin:	Ningbo,China
Settlement Method:	L/C
Transportation Method:	Shipping
Company:	C-STAR INDUSTRIAL LIMITED
Contacts:	Jenny Hung
Mail:	cowboy7105@c-star2000.com
Phone:	13751007108
Website:	www.c-star2000.com
PV:	266

Contact Supplier

Leaving a message

Jenny Hung

Supplier

Email： cowboy7105@c-star2000.com

Country/Region： Zhejiang China

Mobile Number： 13751007108

C-STAR INDUSTRIAL LIMITED

Personal Center

Product Description Company Profile Message information

Model Number	M6-#6711
Brand Name	ALUCARD
Small Orders	Accepted

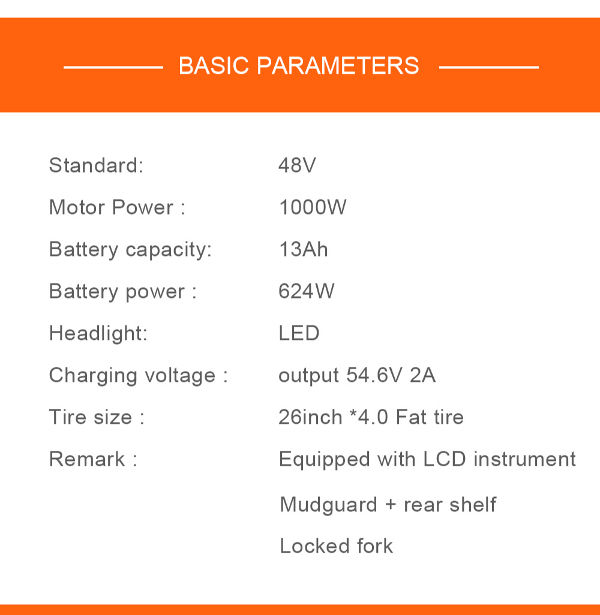

Key Specifications/ Special Features:

Category: electric mountain bike
Model: M6
Colors: Black/blue, black/yellow, white/red, white/green
Frame: aluminum alloy
Front fork: aluminum alloy suspension fork, lockout
Driving mode: Pure electric(5 shifts), Electric assist(5 shifts), Pure human riding
Battery: Lithium-ion battery
Capacity: 48V 10Ah, 48V 13Ah
Range in electric mode: 45 km with battery 48V 10Ah, 55 km with battery 48V 13Ah
Range in electric assist mode: 60 km with battery 48V 10Ah, 75 km with battery 48V 13Ah
Charging methods: Charge directly or take the battery out for charging
Charger: Local standard input 100~240V AC, output 54.6V 2A, overvoltage, overcurrent, short circuit protection
Charging time: 5-6 hours, 6-7 hours
Motor: Rear drive 48V 350W----high speed, brushless, toothed, low resistance and low noise motor
Max torque: 60 N·m
Controller: Intelligent sine wave integrated IC control chip
Accelerator: Rotatable throttle grip/Pedal assist
Headlight & Horn: Integrated LED headlight & horn
Meter: LCD display control instrument
Display function: MPH, miles, electricity, shift, error code, etc
Cruise control: 4 levels cruise control
Protection level: IP54
Max speed: 40 km/h
Gears: 21 speed
Chain: E-bike optimized, 21 speed
Front hub: Quick release aluminum alloy hub
Rims : Aluminum alloy
Tires : Chaoyang 26*4.0" fat tires
Spokes: High rigidity steel
Brake levers: Aluminum alloy, cut off the power to the motor when braking
Brakes: Mechanical disc brakes
Handlebar: Aluminum alloy for fat bike
Stem: Aluminum alloy
Headset: Aluminum alloy
Saddle: Body geometry comfortable sponge saddle
Seat post: Aluminum alloy
Pedals: Aluminum alloy
Accessories: Kickstand, tools
Max load: 150 kg
Net weight: 25 kg, 26 kg
Gross weight: 32 kg, 33 kg
Carton size: 148*32*80 cm

Electric fat bike 26inch electric aluminuim city bike double seats electric mountain bike supplier

Product Certifications

Certificate Standard	FCC
Certificate Image	Click on the picture to see a larger one
Certificate Number	A185060001
Issue Date	2015/11/14
Issued By	Shenzhen Alpha Product Testing Co.Ltd
Expiry Date	2025/11/14

Certificate Standard	UL
Certificate Image	Click on the picture to see a larger one
Certificate Number	E485393
Issue Date	2016/08/18
Issued By	UL LLC
Expiry Date	2025/08/18

Certificate Standard	ROHS
Certificate Image	Click on the picture to see a larger one
Certificate Number	2017SZ0308052
Issue Date	2017/03/21
Issued By	Shenzhen Aisa Test Technology Co.,Ltd.
Expiry Date	2025/03/21

Certificate Standard	CE
Certificate Image	Click on the picture to see a larger one
Certificate Number	2017SZ0308052
Issue Date	2017/03/14
Issued By	Shenzhen Asia Test Technology Co.,Ltd.
Expiry Date	2025/03/14

Certificate Standard	FCC
Certificate Image	Click on the picture to see a larger one
Certificate Number	ATT2020SZ0904203F
Issue Date	2020/08/12
Issued By	YACETONG TESTING
Expiry Date	2025/08/12

Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
