Ningbo SMC Optoelectronics Co., Ltd
Product name: 300x300 led panel lights
LED brand : SMC
Lumen :700lm
CRI: Ra >80
Dimmerable :1%-100% triac
Waranty: 2 years
Certificate: CE ROHS
Description of Lionway dimmable 300x300 led panel lights

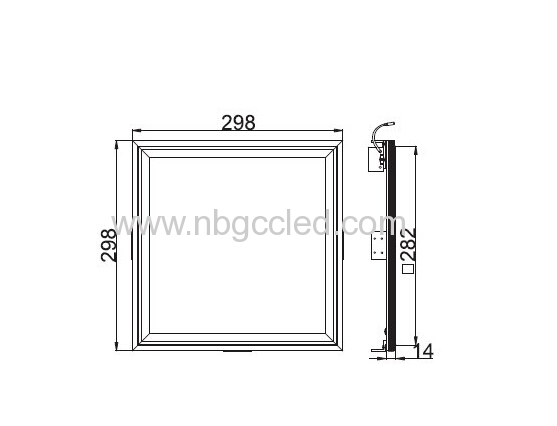

Dimensions : (mm)
Notes
1. All dimension units are millimeters.
2. All dimension tolerance is ±2mm otherwise additional statement.
Technical Request
Long sides into the light | ||
NUMBER | ITEM | DESCRIPTION |
1 | Working Voltage | AC90-265VAC |
2 | Voltage | 20-36v |
3 | Current | 1200MA |
4 | Power Consumption | 10W |
5 | Luminous fluxΦ | 700LM |
6 | Luminous Efficacy | 80m/w |
7 | CRI | Ra=81 |
8 | Color Temperature | 2700-6500K |
9 | Life Time | >50,000 Hour |
10 | Operating Temperature | -20 to +55℃ |
11 | Storage Temperature | -20 to +70℃ |
12 | Humidity Operating | 30%-70% |
13 | Humidity Storage | 30%-70% |
14 | Fixing Ways | In-built Mounting/Suspending/Hung from side |
Features
※Energy- saving, up to 50%. high brightness, even light.
※5-year life time
Applications
Hotels,Meeting rooms,Offices,Commercial Purposes,Institution Buildings,Schools,
Hospitals, Places where energy saving and high color rendering index lightings required
LED Description
Item | Color | PCB Width(mm) | PCB Length(mm) | Current(A) | Power per lamp(W) |
(SMC-PS3030PW-011) | White | 6 | 570 | 1.2 | 0.2 |
Spectrogram
the products.
LED PANEL LIGHT Installation: |
1. Pls checking and ensuring all joints is right connected after completed the installation.
2. Check and ensure all positive and negative of the joints power is correct.
3. Check all lock screw parts whether fixed lock LED panel light's average life-span over100,000 hours (equivalent 10 years), and more 20 times than the common products, stable operation . Saving the maintenance cost of operation can completely made up for original investment. LED small fever, compare with the traditional of lamps and lanterns, the LED panel light's consumption of power only10%-20%, which makes them more environmentally friendly, and more correspond with user's lighting budget.
packaging:
Ceiling Spring Mounted Installation:
Our Clients:
We're a manufacturer trusted by Aux, Chigao and Lexy and Midea for many years.
