Key Specifications/ Special Features:

Sandwich Wall Panels is Using Color Steel or Galvanized Sheet as the upper and lower surface and EPS/Glass wool/Rock wool /PU as the core material, composited by special glue of building use.

Key Specifications/Special Features:

Sandwich Wall Panels is Using Color Steel or Galvanized Sheet as the upper and lower surface and EPS/Glass wool/Rock wool /PU as the core material, composited by special glue of building use.

Application:
1.At Construction Site: the sandwich panels are used to install into the prefab house as the Office, Dormitory,etc;
2. Factory: the sandwich panel are used into build the plant to manufacture;
3. Carport, transportation van board to keep temperature, etc

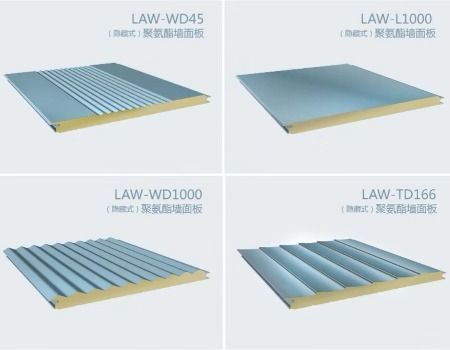

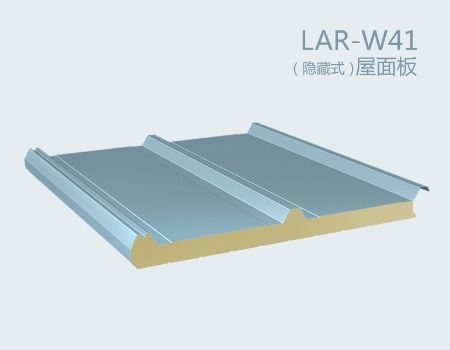

PU Sandwich Panel information:

The composite panel made of polyurethane as the core material consists of upper and lower color steel plates and intermediate foamed polyurethane. By adopting the world's advanced six-component on-line automatic operation mixing pouring technology, the mixing process of social batching centers or factories can be completed online at one time, and can be adjusted at will according to the temperature online, thus producing distinctive high - strength, energy - saving, green and environment-friendly building panels

PU Sandwich Panel Roof/Wall Panel Specification:

1. Width:1000mm

2. Lenghth:Customized(not exceeding11.8m)

3. Thickness:50mm,75mm,100mm,150mm,200mm

4. Density:35-45kg/m3

5. Steel sheet thickness: 0.4-0.8mm

6. Zinc content: Z40-275g/m2

7. Fire Proof: B1

8. RAL color available

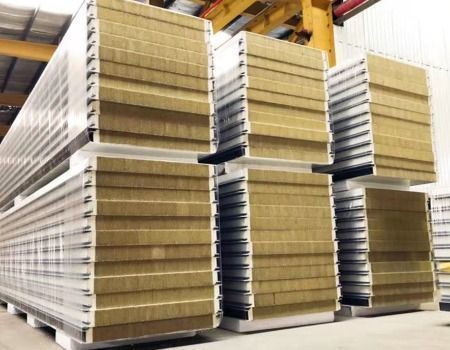

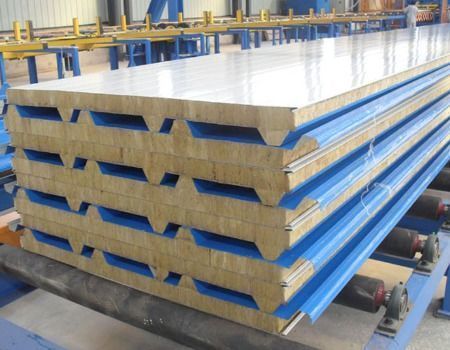

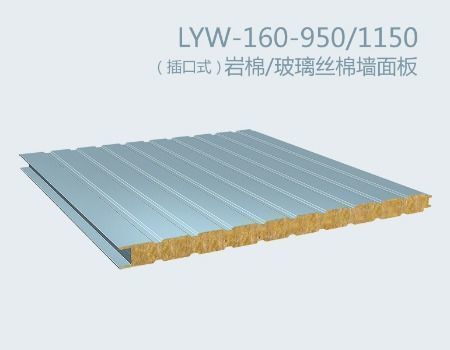

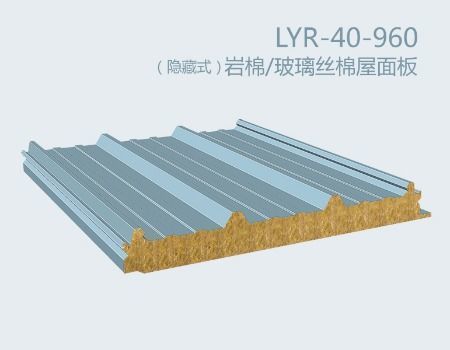

Rockwool/Glasswool Sandwich Panel information:

Rock wool sandwich panel is an artificial inorganic fiber made of basalt through high temperature melting processing. Adding a certain amount of binder, dustproof oil and water repellent into the rock wool fiber, and making products with different densities according to different uses through sedimentation, solidification, cutting and other processes. The lower steel panel is first formed by a press, and then glue is coated on the inner surface of the upper and lower steel panels. Conveying the rock wool strips to an extruder, and extruding the rock wool strips by a machine to form a complete composite panel.

Rockwool/Glasswool Sandwich Panel Roof/Wall Panel Specification:

1. Width:960mm

2. Lenghth:Customized(not exceeding11.8m)

3. Thickness:50mm,75mm,100mm,150mm,200mm

4. Density:50-140kg/m3

5. Steel sheet thickness: 0.4-0.8mm

6. Zinc content: Z40-275g/m2

7. Fire Proof: A

8. RAL color available

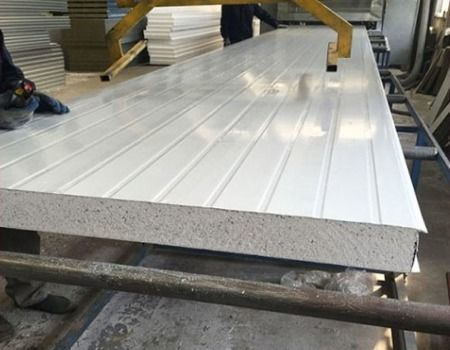

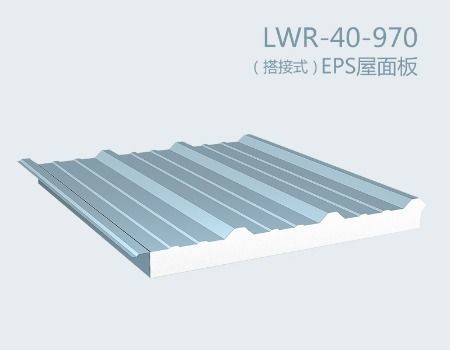

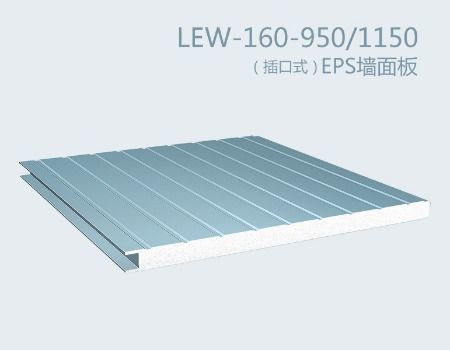

EPS Sandwich Panel information:

EPS Sandwich Panel can be used in horizontal or vertical applications and with a range of colour, joint and profile options, it can meet the functional and aesthetic requirements demanded by a variety of  facilities such as Sports Centre, Commercial premises, Offices, Warehouse and Factories.

EPS Sandwich Panel Roof/Wall Panel Specification:

1. Width:950/1150mm

2. Lenghth:Customized(not exceeding11.8m)

3. Thickness:50mm,75mm,100mm,150mm,200mm

4. Density:6-34kg/m3

5. Steel sheet thickness: 0.4-0.8mm

6. Zinc content: Z40-275g/m2

7. Fire Proof: B

8. RAL color available

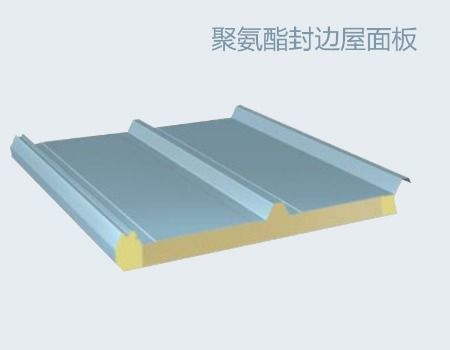

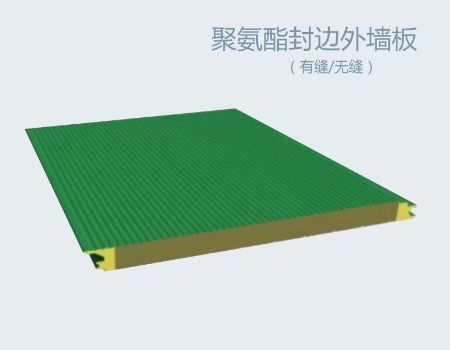

PU Sealing Rock/Glass Wool Sandwich Panel information:

The polyurethane edge-sealing composite panel is mainly made of rock wool and glass wool. It is made of high-quality color coated steel panel as the surface material, continuous rock wool and glass wool as the core material, and high-density hard foamed polyurethane as the rabbet   filling. After high-pressure foaming and curing, the cotton cloth is automatically compacted and formed and compounded by ultra-long and precise double-coated belts. The polyurethane edge sealing core material and the two steel panels are bonded into a whole and work together.

PU Sealing Rock/Glass Wool Sandwich Panel Roof/Wall Panel Specification:

1. Width:1000mm

2. Lenghth:Customized(not exceeding11.8m)

3. Thickness:50mm,75mm,100mm,150mm,200mm

4. Rockwool Density:100-120kg/m3

5. Glasswool Density:60-64kg/m3

6. Steel sheet thickness: 0.4-0.8mm

7. Zinc content: Z40-275g/m2

8. Fire Proof: A

9. RAL color available

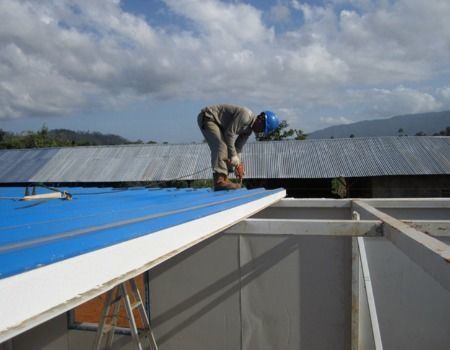

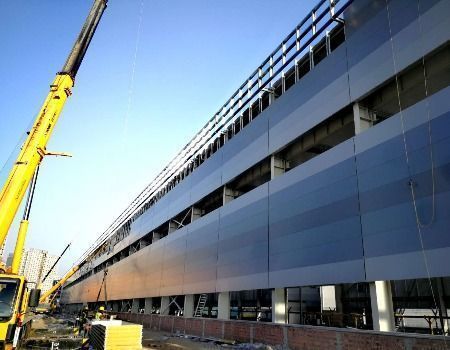

EPS Sandwich Panel Installation Process
