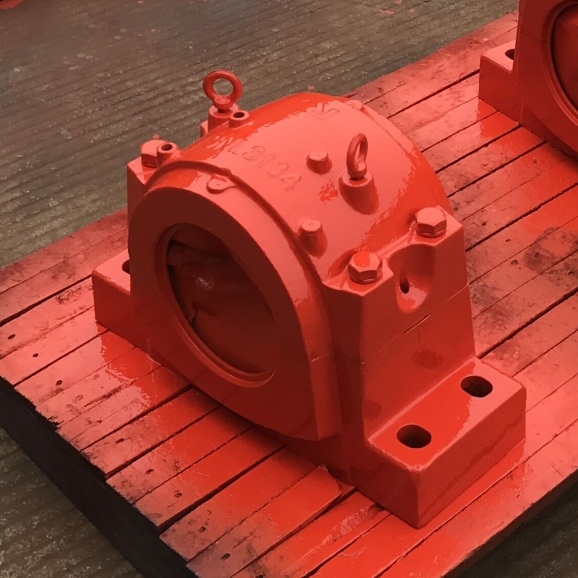

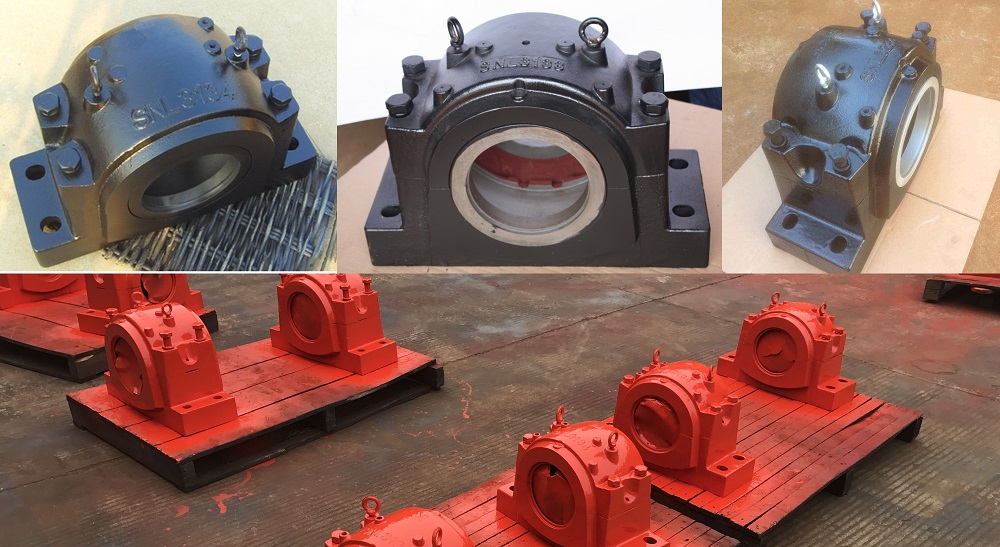

The SNL 30, 31, 32 series split plummer block housings, also referred to as "Large SNL split plummer block housings", enable the bearings to achieve maximum bearing service life with minimum need for maintenance.

This supports user efforts to further reduce maintenance costs. Among other enhancements, SNL housings are designed for easy alignment and handling during installation. Another benefit is the choice of oil or grease lubrication for the bearings housed in SNL plummer blocks.

SNL housings can be used for both the locating and non-locating bearing positions. In addition to the standard seal assortment, SNL housings in the 30, 31 and 32 series are also available with seals for large axial movements. Custom seals for special applications are also available on request.

The SNL split plummer block housings are made of grey cast iron. For applications where the strength of grey cast iron is inadequate, dimensionally equivalent housings made of spheroidal graphite cast iron or cast steel can also be supplied. These series bearing housings are only available with four cast attachment bolt holes (series FSNLD) or without any holes in the base (series SSNLD).

Product Information:

Product Name: Split Plummer Blocks, Split Type Bearing Housings

Series:  Large SNL housings in the 30, 31, and 32 series

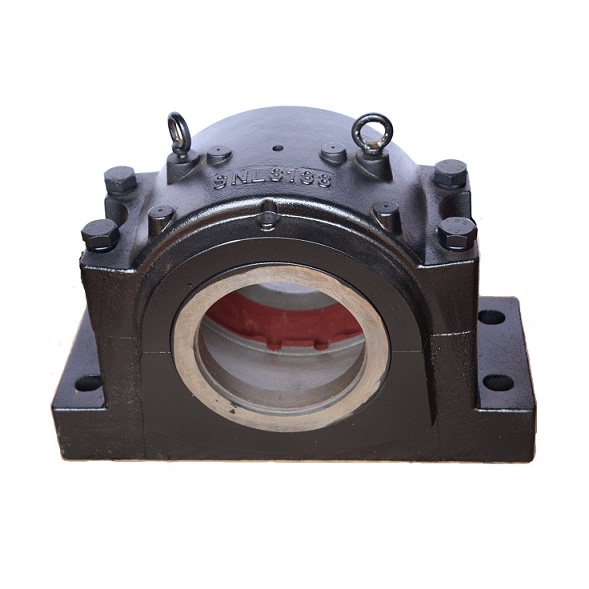

Model No.: SNL3134, SNL3138, SNL3140, SNL3152, SNL3168 ...

Material: Grey Cast Iron, Ductile Iron, Cast Steel, or Stainless Steel

Vibration: Z1V1, Z2V2, Z3V3, Z4V4

Painting Color: Blue, Black, Green, Red, Grey, Orange or customised

Applications: Agricultral Machinery, Mining Machinry, Papermaking Machinery, Sugar Mill Equipment, Sawmill Equipment, Heavy-Duty Machineries etc.

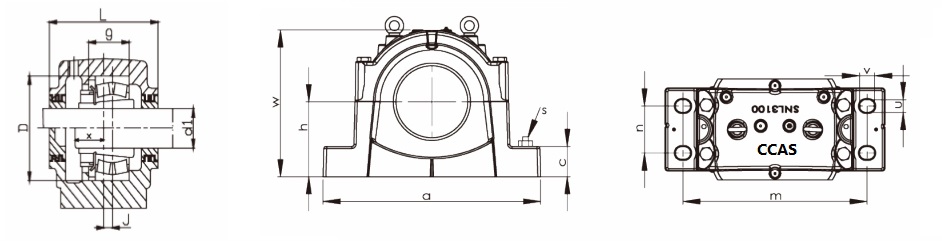

Drawing and Technical Data Sheet of SNL 31 Series Plummer Block Housings

Great care has been taken to ensure the correctness of the information contained in this publication but no liability can be assumed for any incorrect or incomplete data. CCAS technical department reserves the right to final interpretation.
